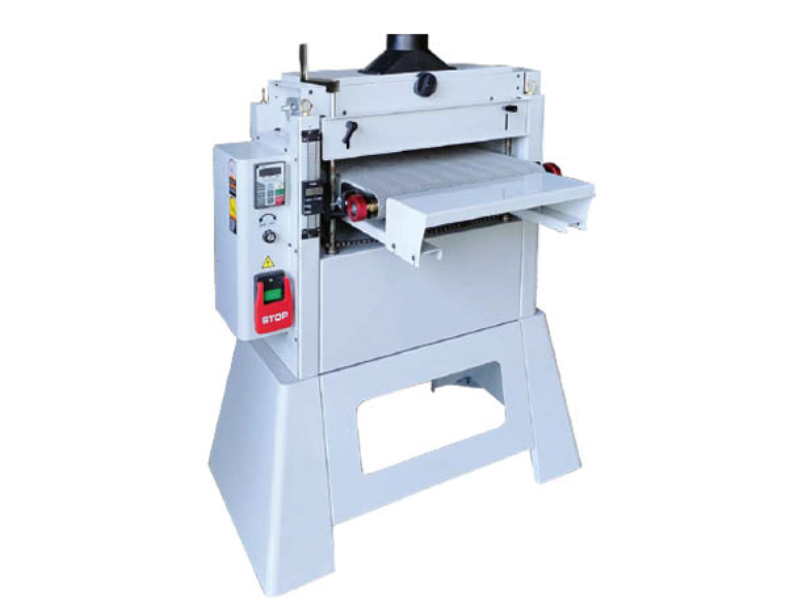

17" Combination Brush/Drum Sander

Add to inquiry box
Production information

Identification


Footprint (mm)

Combination Brush/Drum Sander Features

It is a small Combination Brush/Drum Sander suitable for DIY players and studio users. It is convenient to be placed on the woodworking table and used directly.

It can also be used directly on the ground after adding a stand. It is suitable for the last polishing process of wooden boards.

It can be used with the number of abrasive sanding paper. The smaller the number, the finer the polished surface.

Also, you could place different brushes, such as Flatter Brush, Nylon Brush, and Wire Brush, etc.

Quickly change brush heads or abrasive loadings

Our exclusive technology allows you to drum sand and profile sand on the same machine. Interchangeable drum and brush heads allows for unlimited applications.

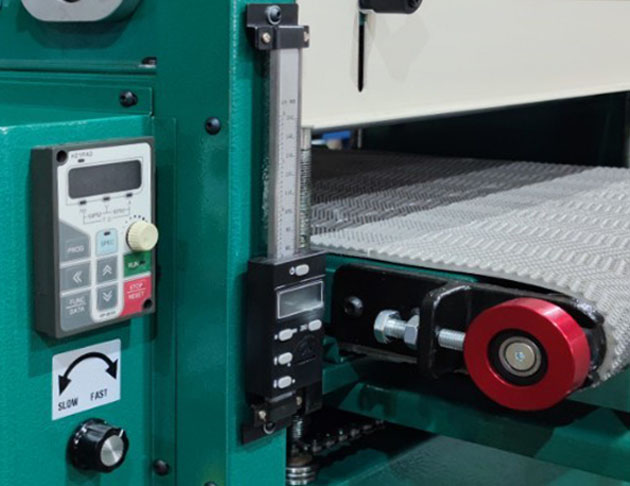

DRO system

Add the digital readout scale.
It can quickly and correctly read the linear displacement variation, and there will be no interpretation error due to personal operation.



Double groove of pulley

As the horse power is increased, original single groove upgrades to double groove of pulley to increase the friction of the belt and pulley.



Add the inverter system

Inverter system could offer variable speeds for different brushes or drums.
A variable frequency drive speed control with digital readout with the turn of a dial.



Add the extension table

  • Increase the stability of feeding  the work piece.
  • Longer work piece is allowed.
  • Increase the working space.
  • Use it as a working table to place some small tools.



Add the safety board

  • You could adjust the height of the safety board  you need  by two knobs.
  • Increase the safety when use
  • Increase the dust collecting efficiency


*Variable speeds ; RPM400~1700
Brush : RPM 400-1200 ; DRUM : RPM 1700
*Quick change brushes/Drums
*Drum Motor 1.75HP/1PH/110V
*Conveyor Motor 110V
*Industrial-Duty Conveyor Belt
*Includes the flatter brush 8" #80
*Includes extension table set for conveyor belt
*Includes a set of semi-cabinet stand
*Includes DRO scale
MODEL YES-DS17A
AC MOTOR 1.75HP/110/1PH
DC MOTOR DC 180W
Max. Sanding Width 17"
Max. Material Thickness 4"
Min. Material Thickness 2"
Minimum Board Length.  8"
Conveyor Belt Speeds 3-16 FPM
Brushes Speeds 400~1200 RPM
Optional Brushes Flatter Brush, Nylon Brush,
Wire Brush, etc.
Min. Dust Collection REQ. 750 CFM
Dust Collection Port 4"

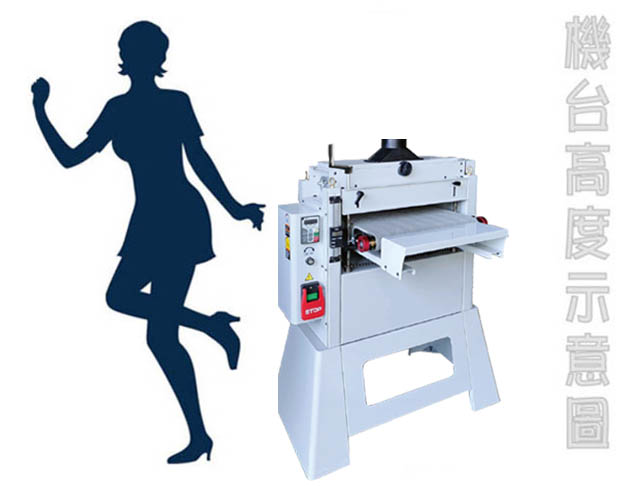

Footprint 93x86x122cm (W/O stand)
Machine Weight 75 KGS
